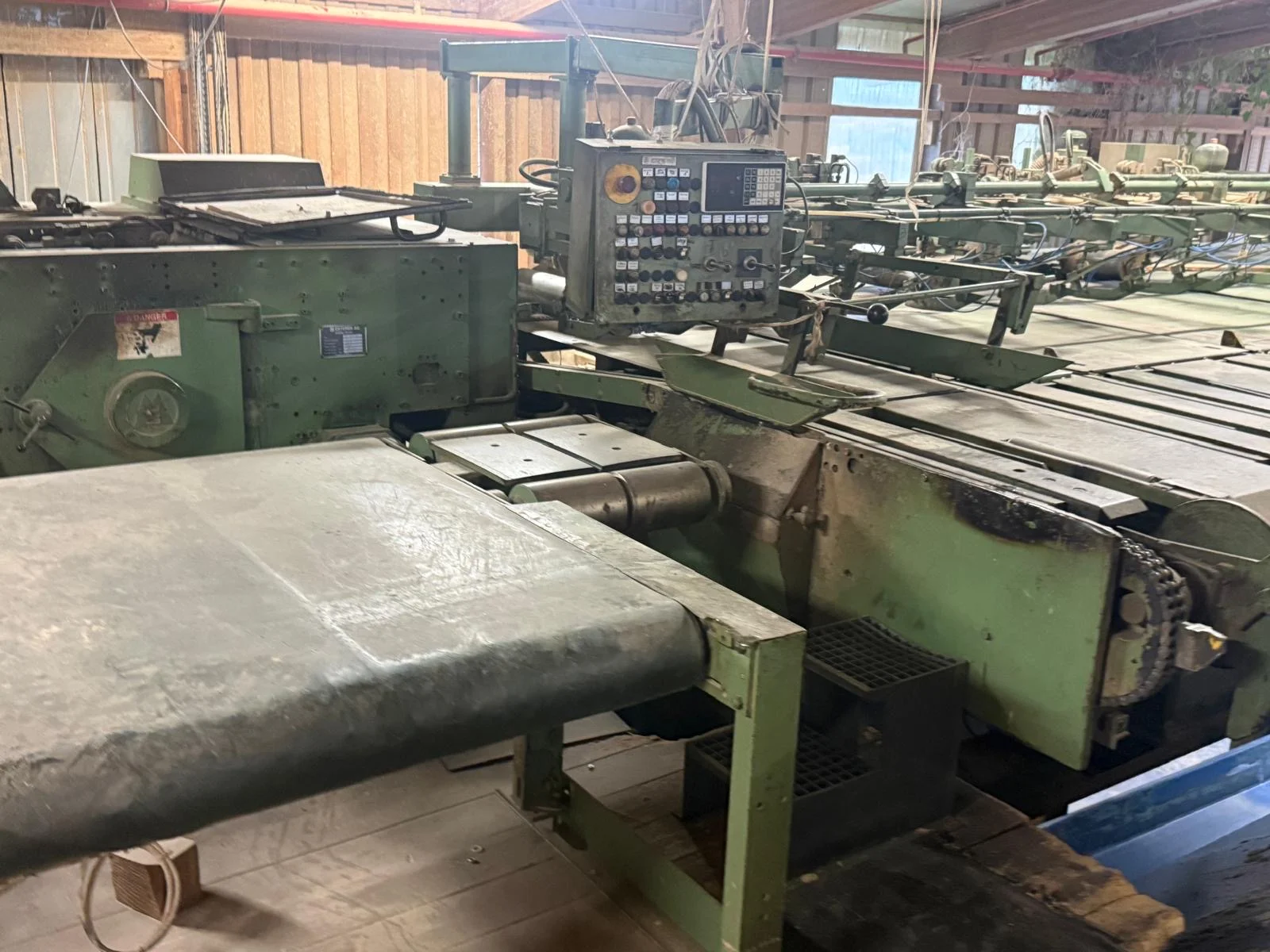

EWD Combimes

Manufacturer: EWD

Model: Combimes BK100 TL-2

Year of manufacture: 1990

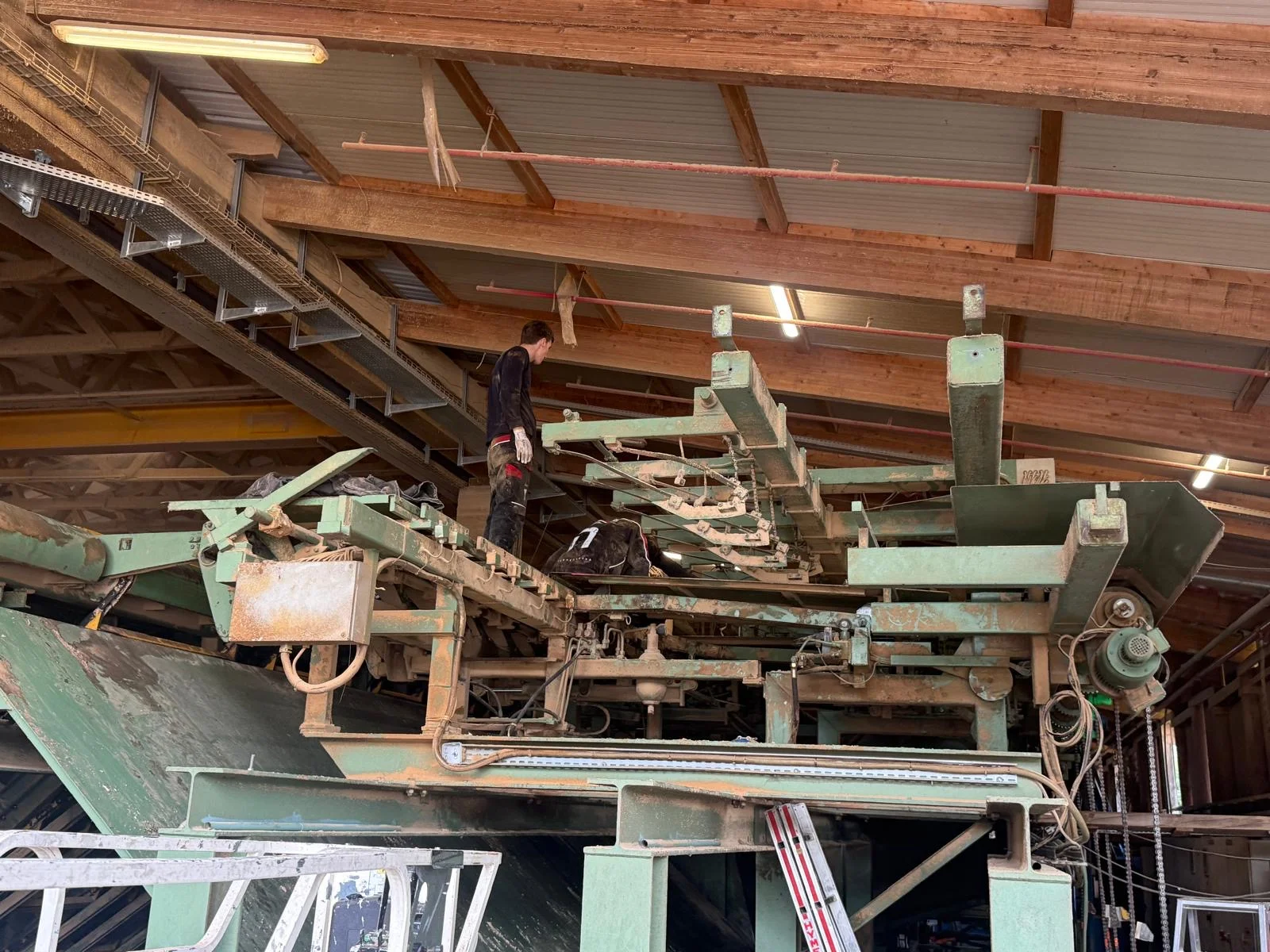

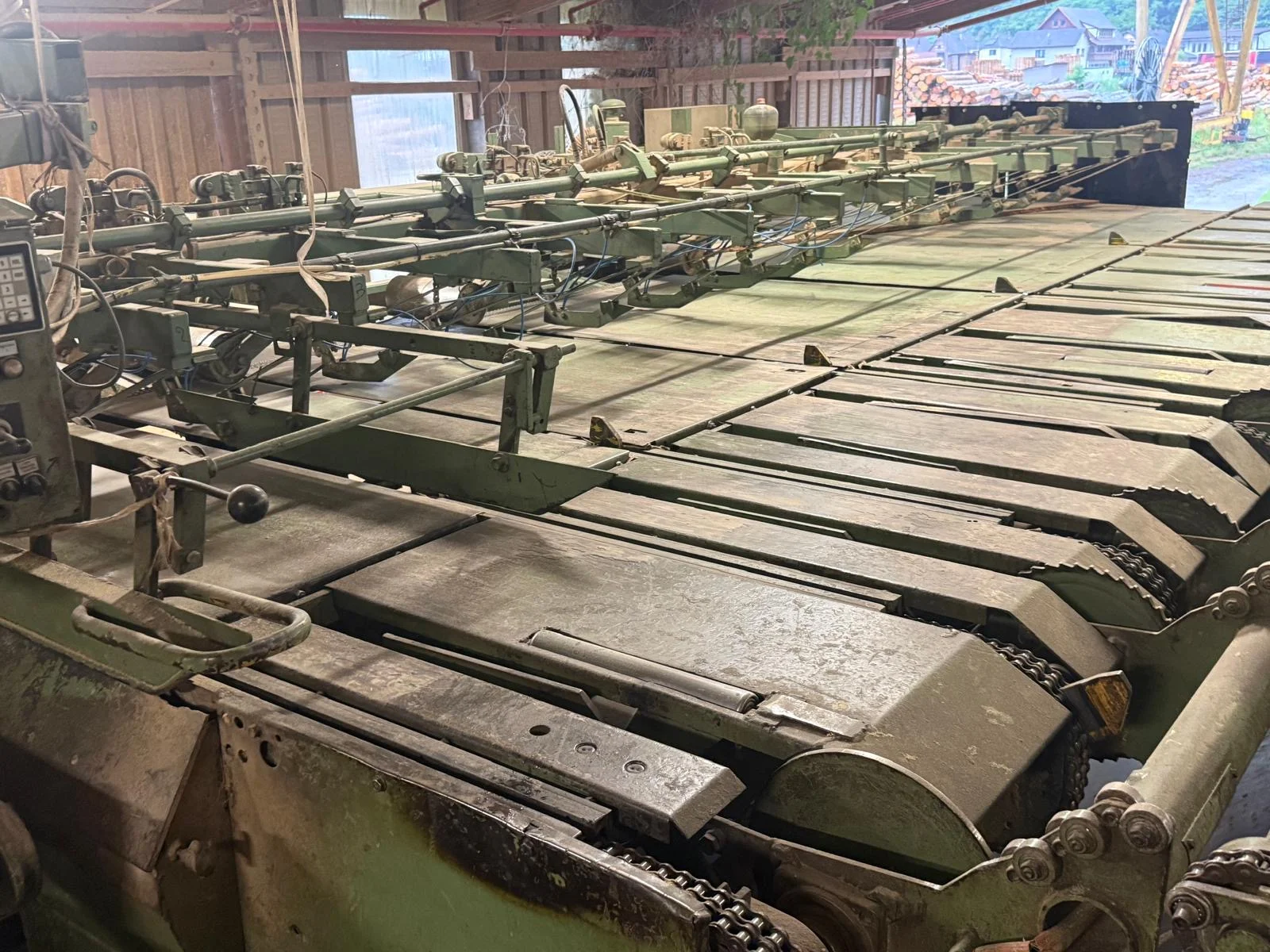

The EWD Combimes BK100 TL-2 is an automatic edging machine designed for the cost-effective processing of boards and planks in sawmill operations. The machine features a pneumatic measurement system to detect the workpiece contour and automatically determines the optimal cutting line to maximize wood yield.

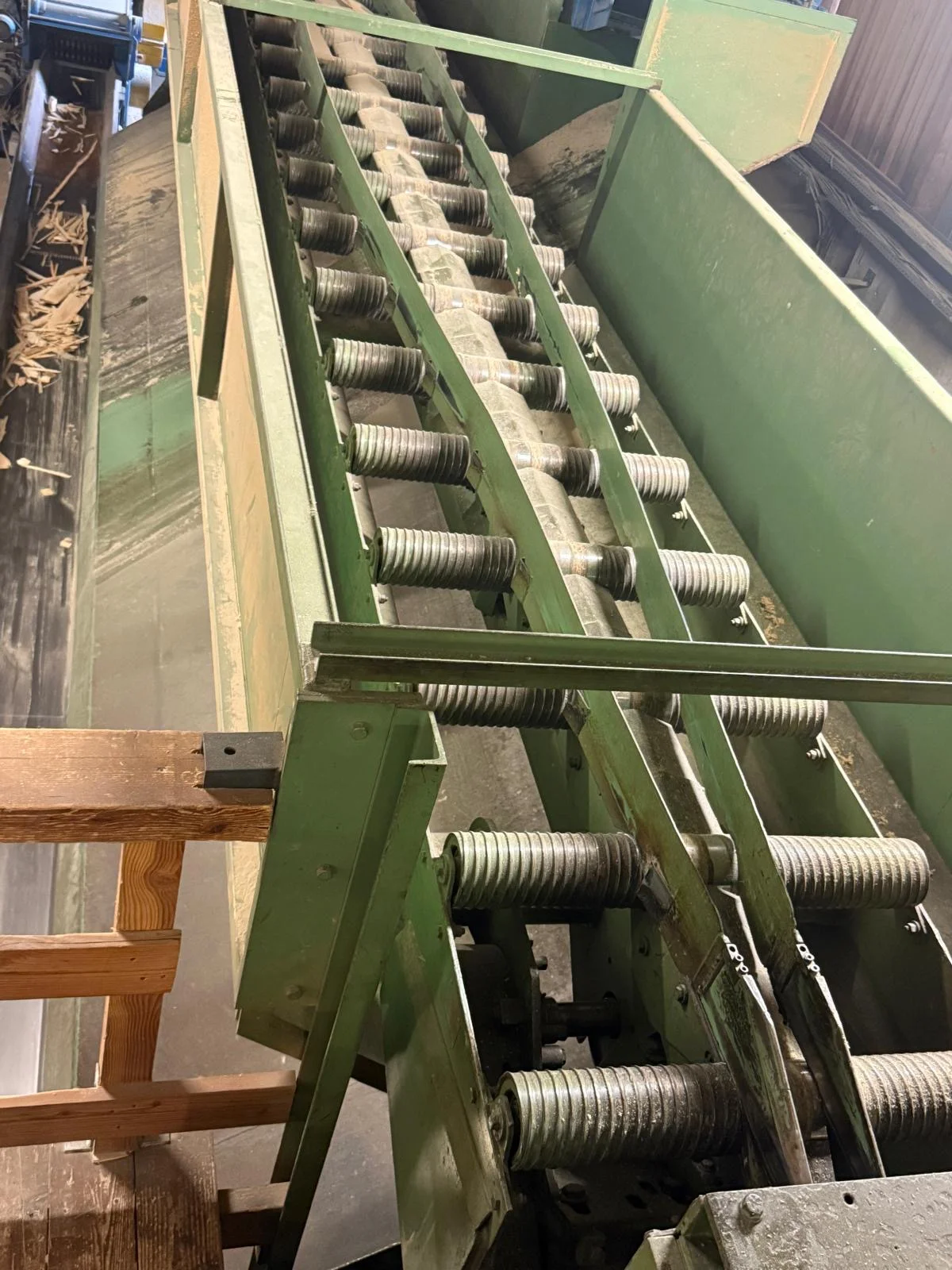

The workpieces are automatically measured and fed to the adjustable circular saw units. The robust steel construction, precise feed, and automatic cut optimization ensure high dimensional accuracy and reliable continuous operation.

Technical Specifications

• Manufacturer: EWD (Esterer WD GmbH)
• Model: Combimes BK100 TL-2
• Machine Type: Automatic edging and trimming system
• Year of Manufacture: 1990
• Application: Edging and trimming of boards and planks

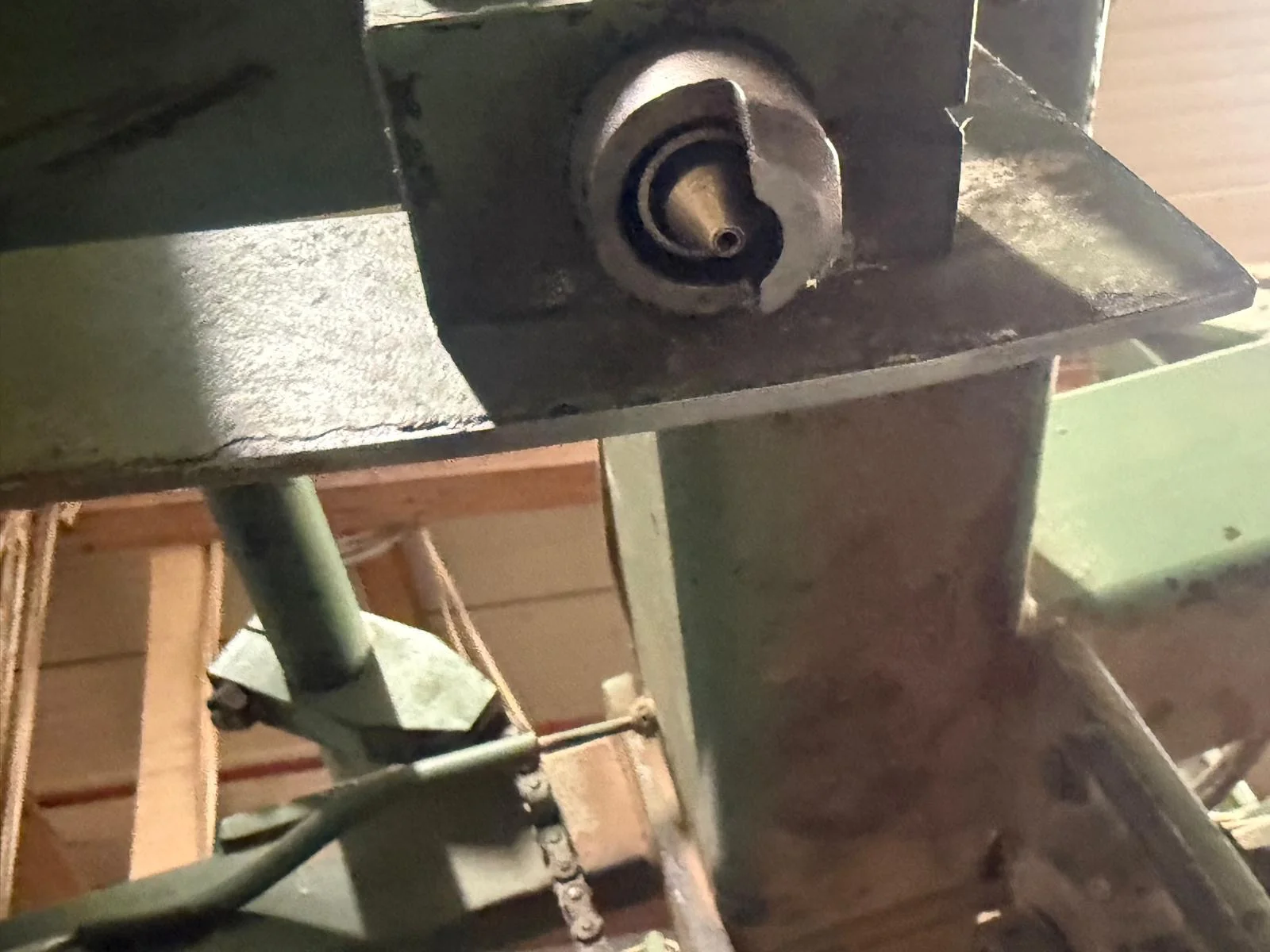

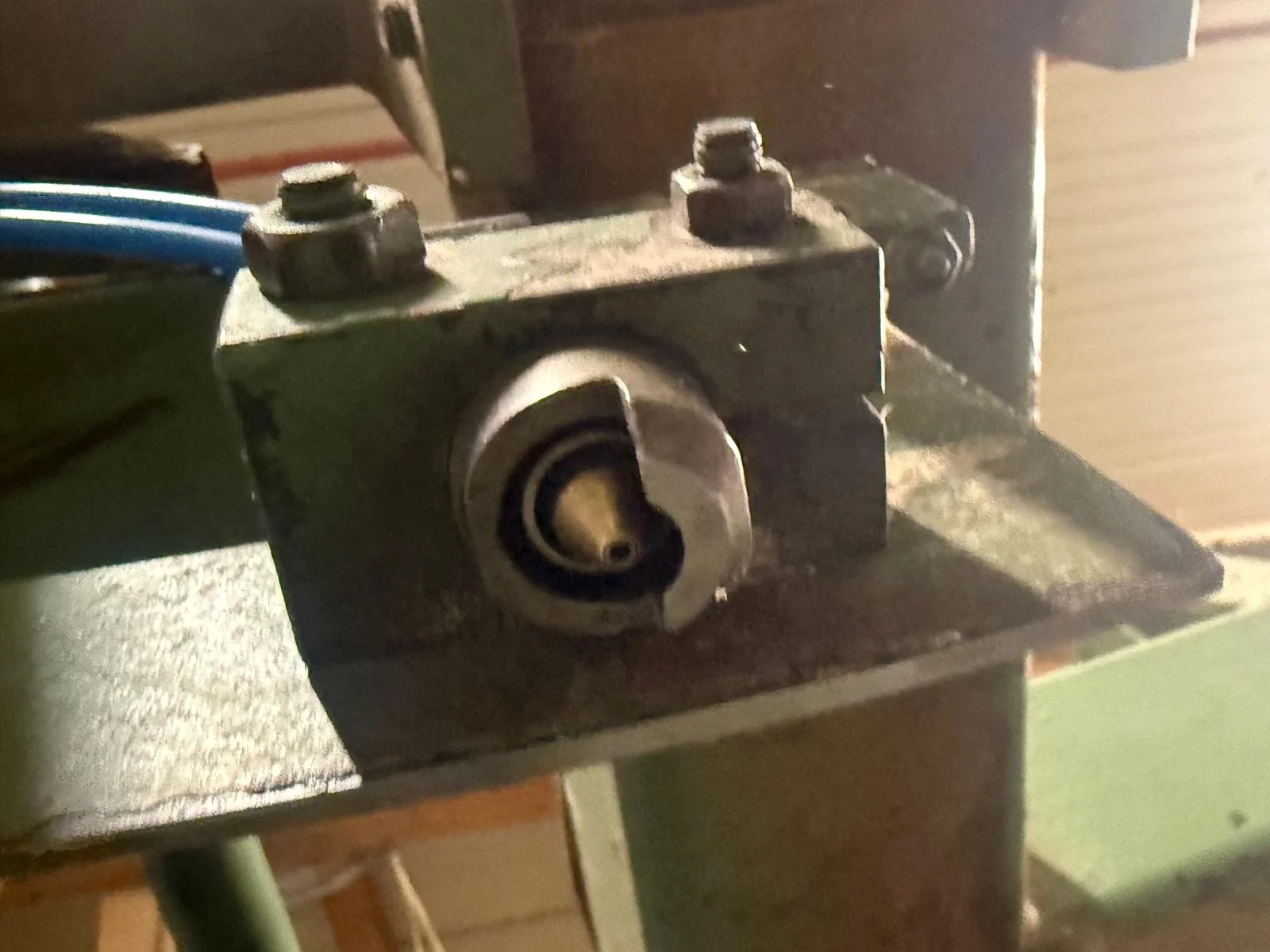

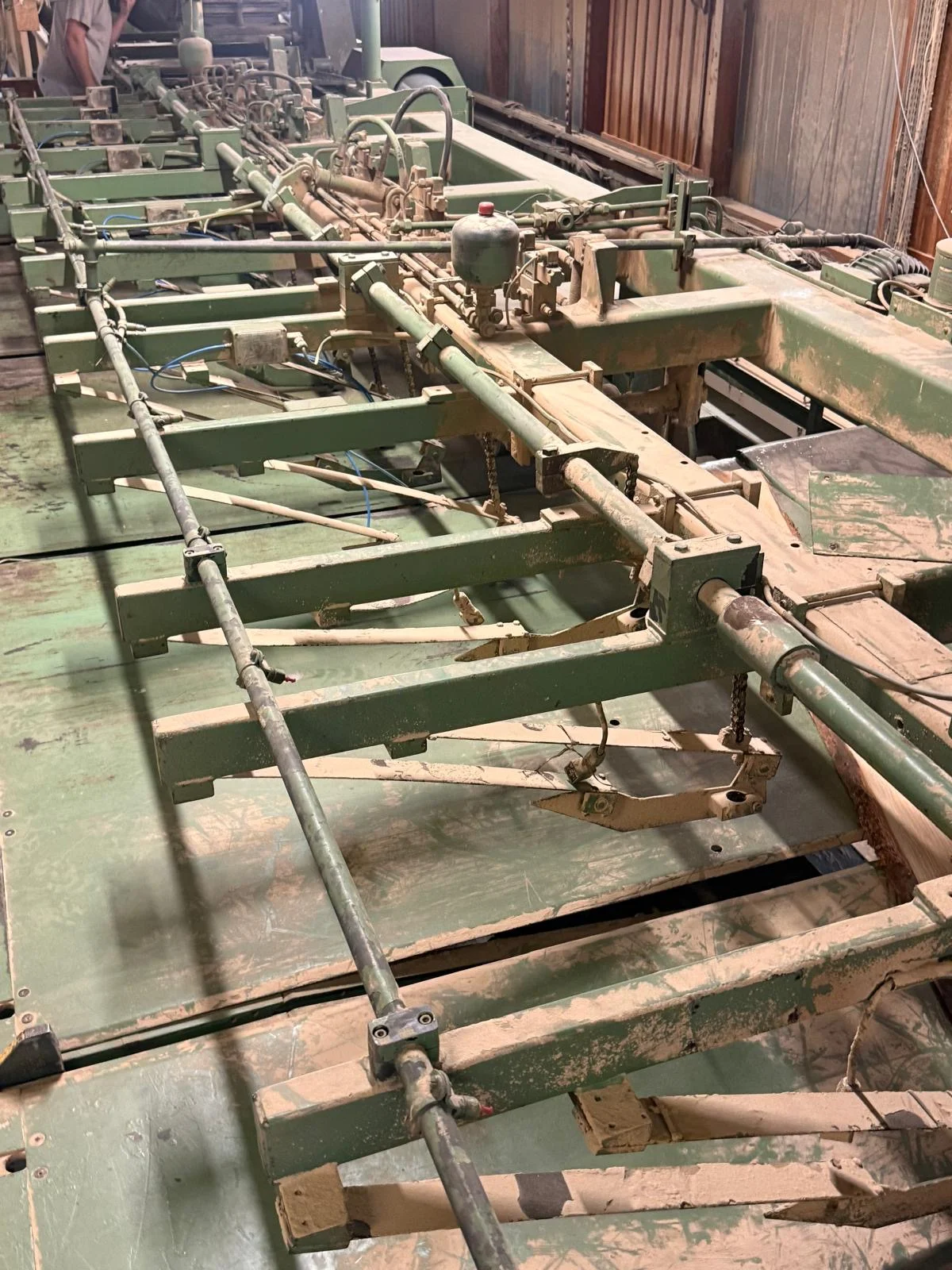

• Measurement System: Pneumatic air measurement
• Workpiece alignment: Automatic alignment according to the optimal cutting line
• Cutting optimization: Automatic determination of the most economical trimming

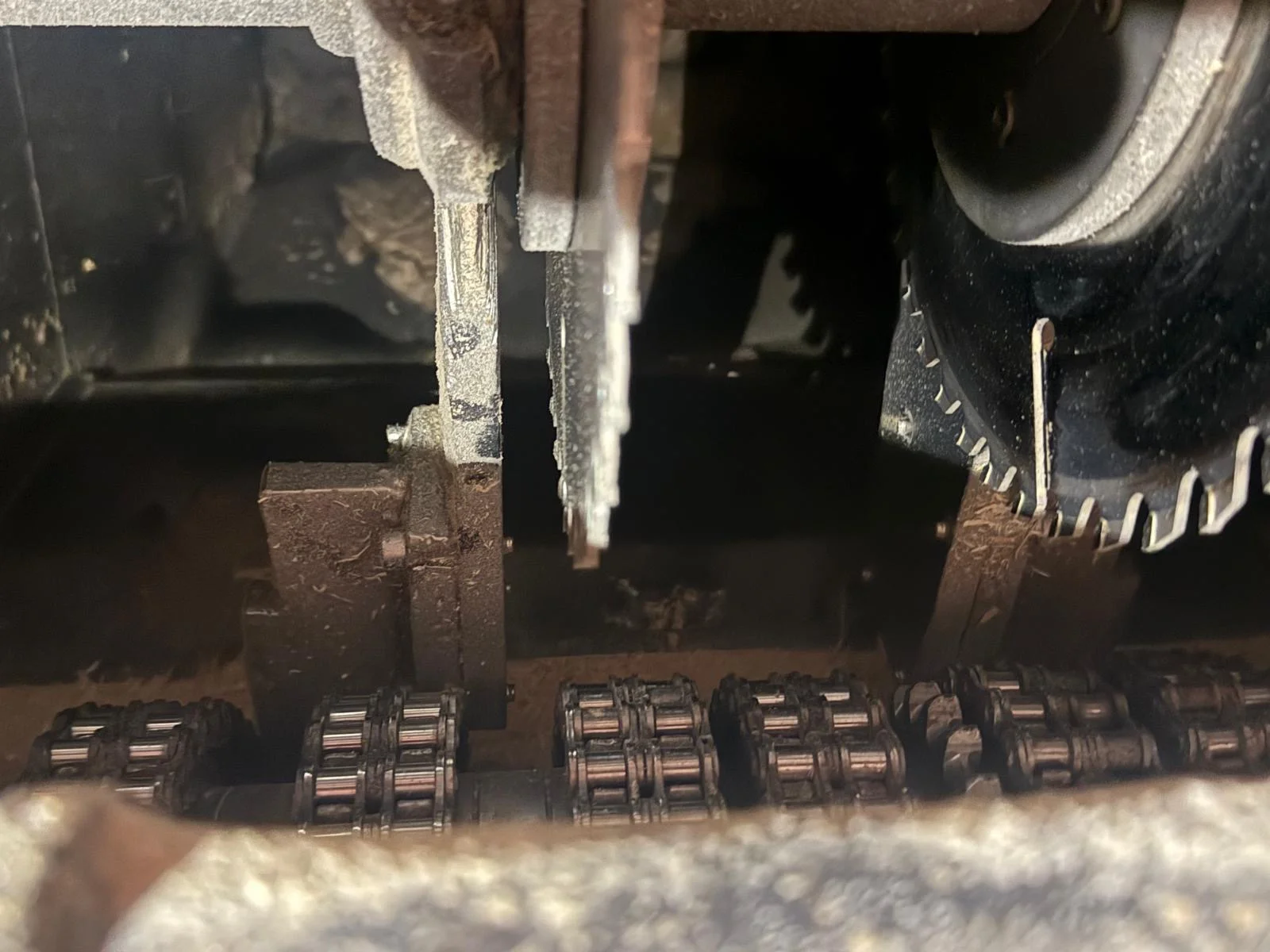

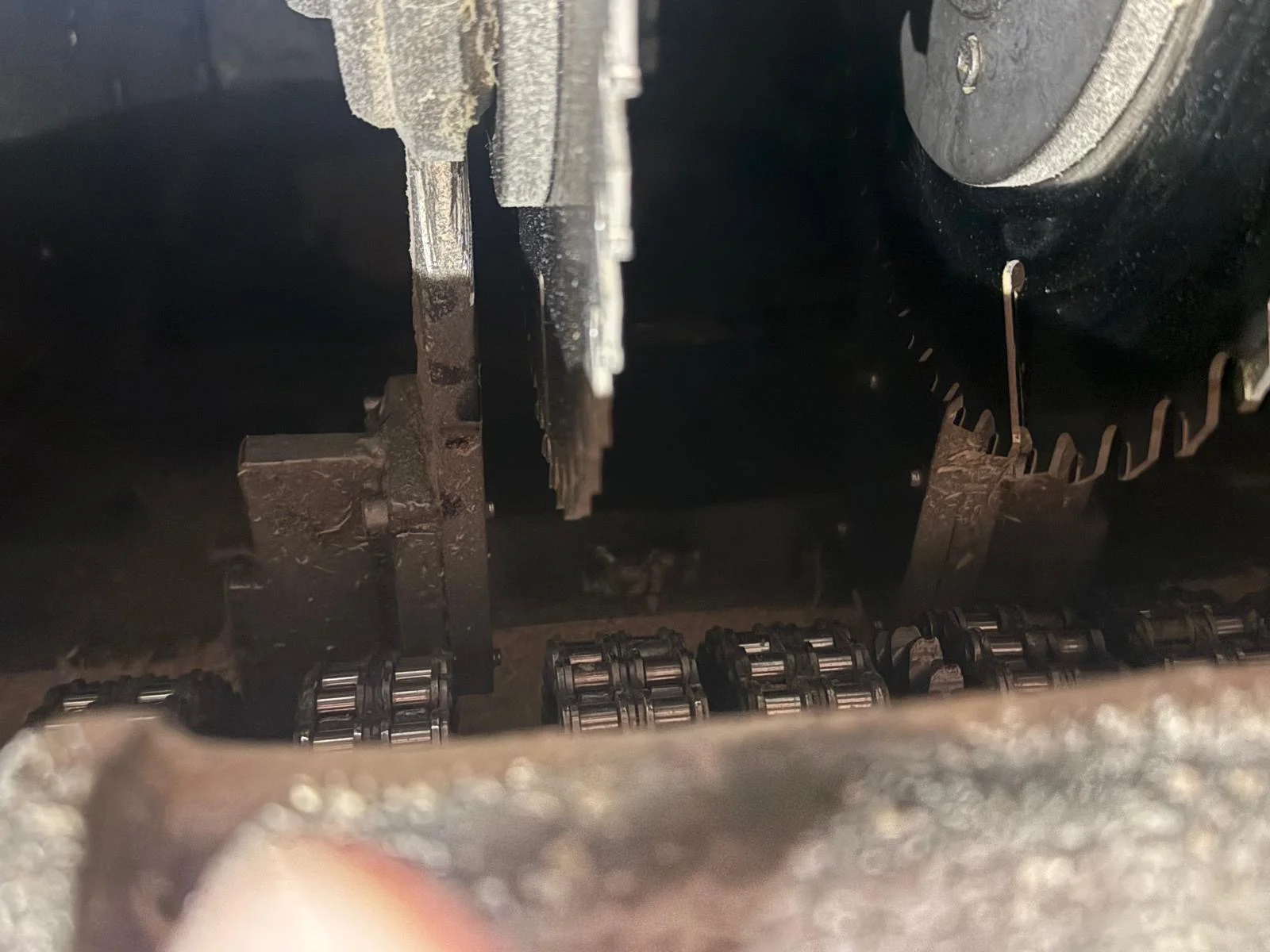

• Saw units: Servo-hydraulically adjustable circular saw units

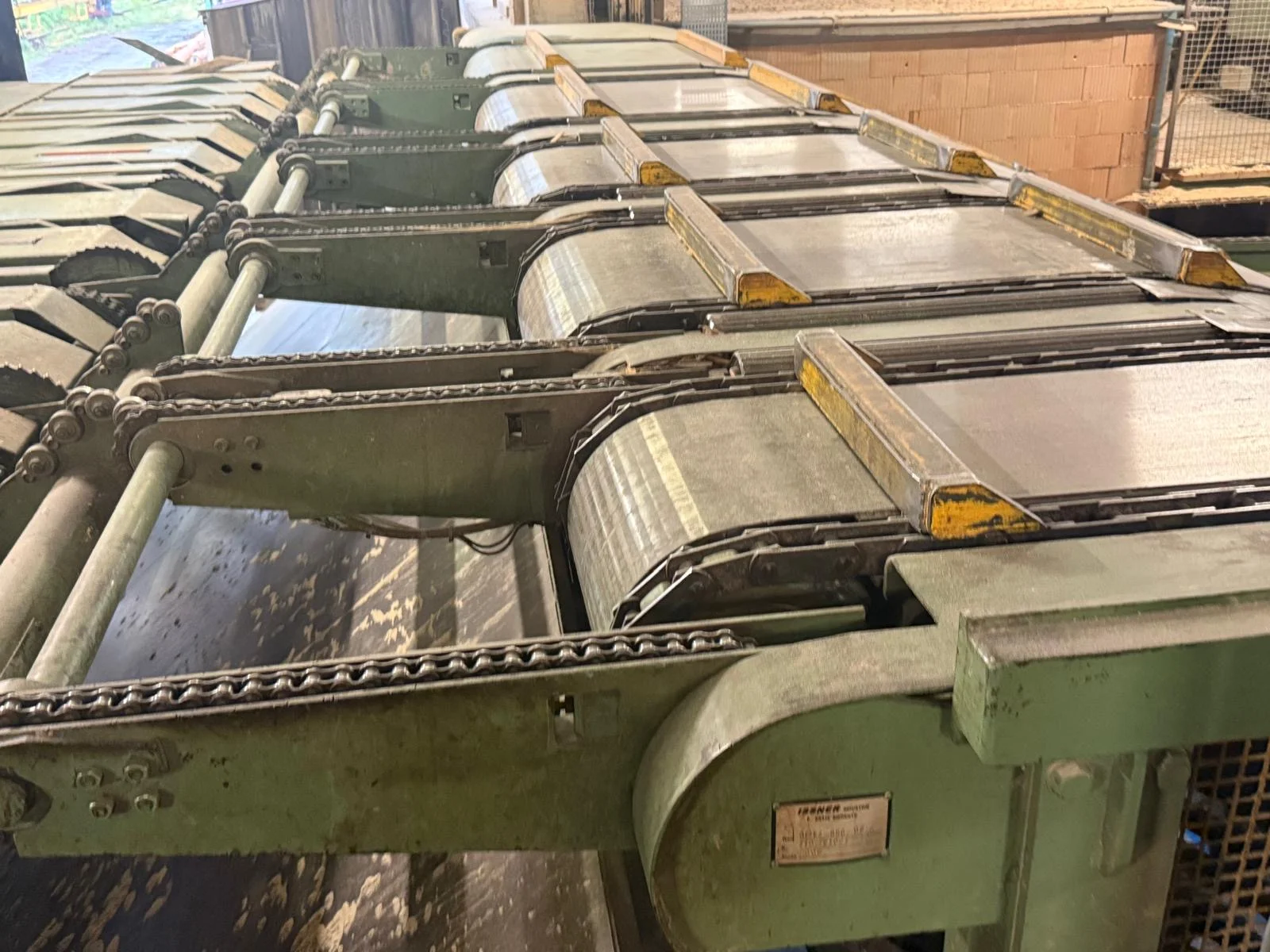

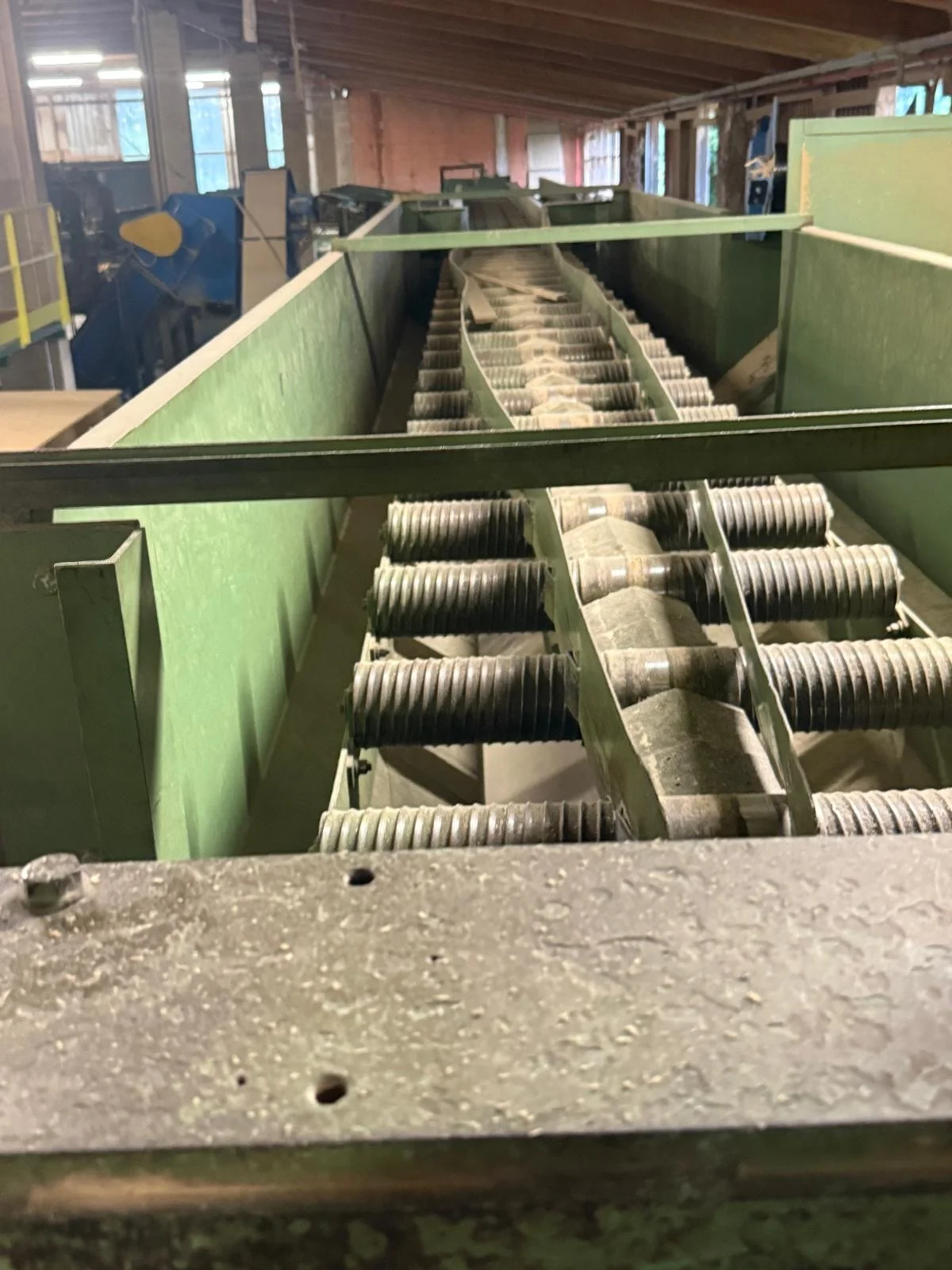

• Feed: Automatic, frequency-controlled feed

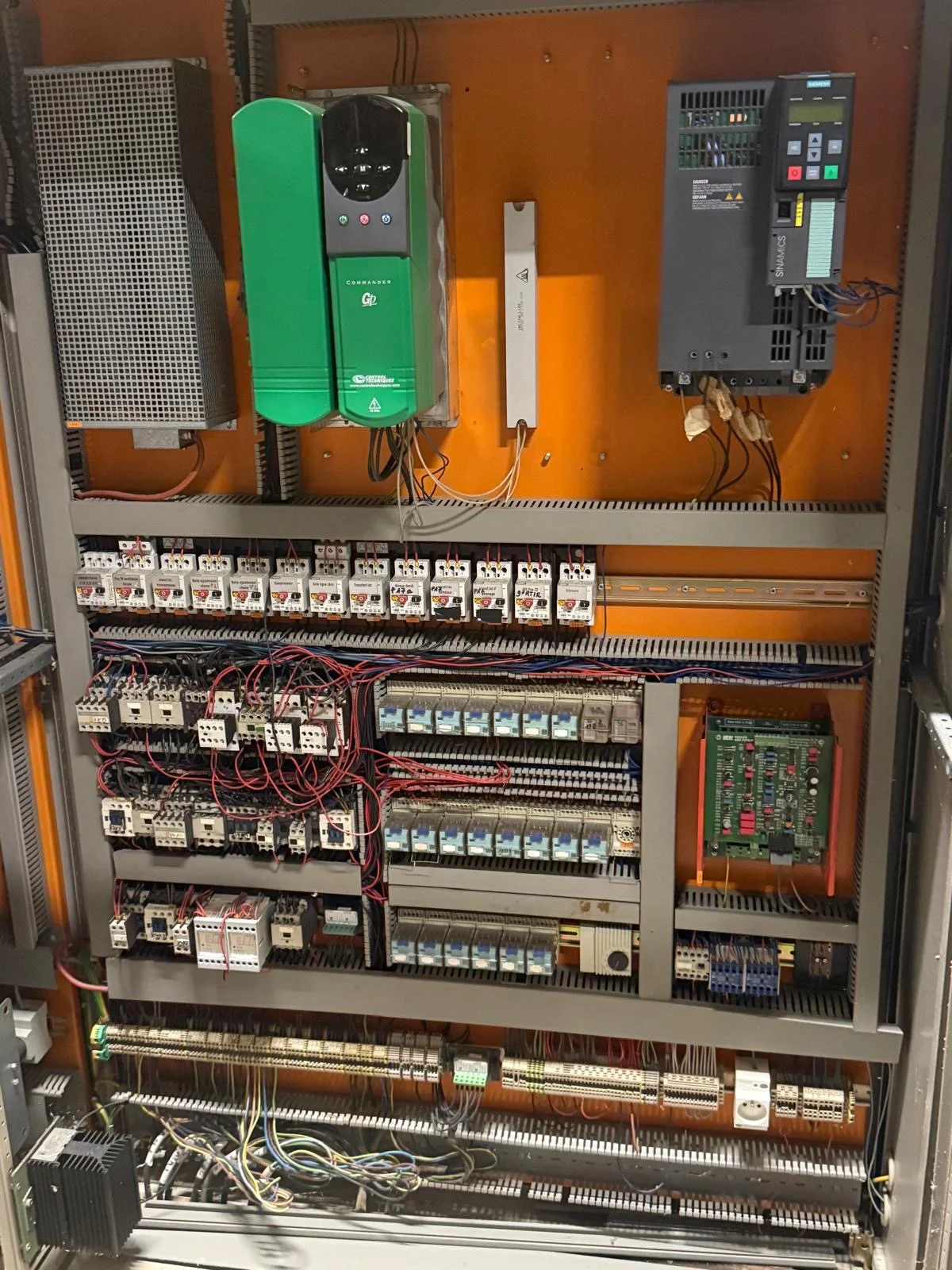

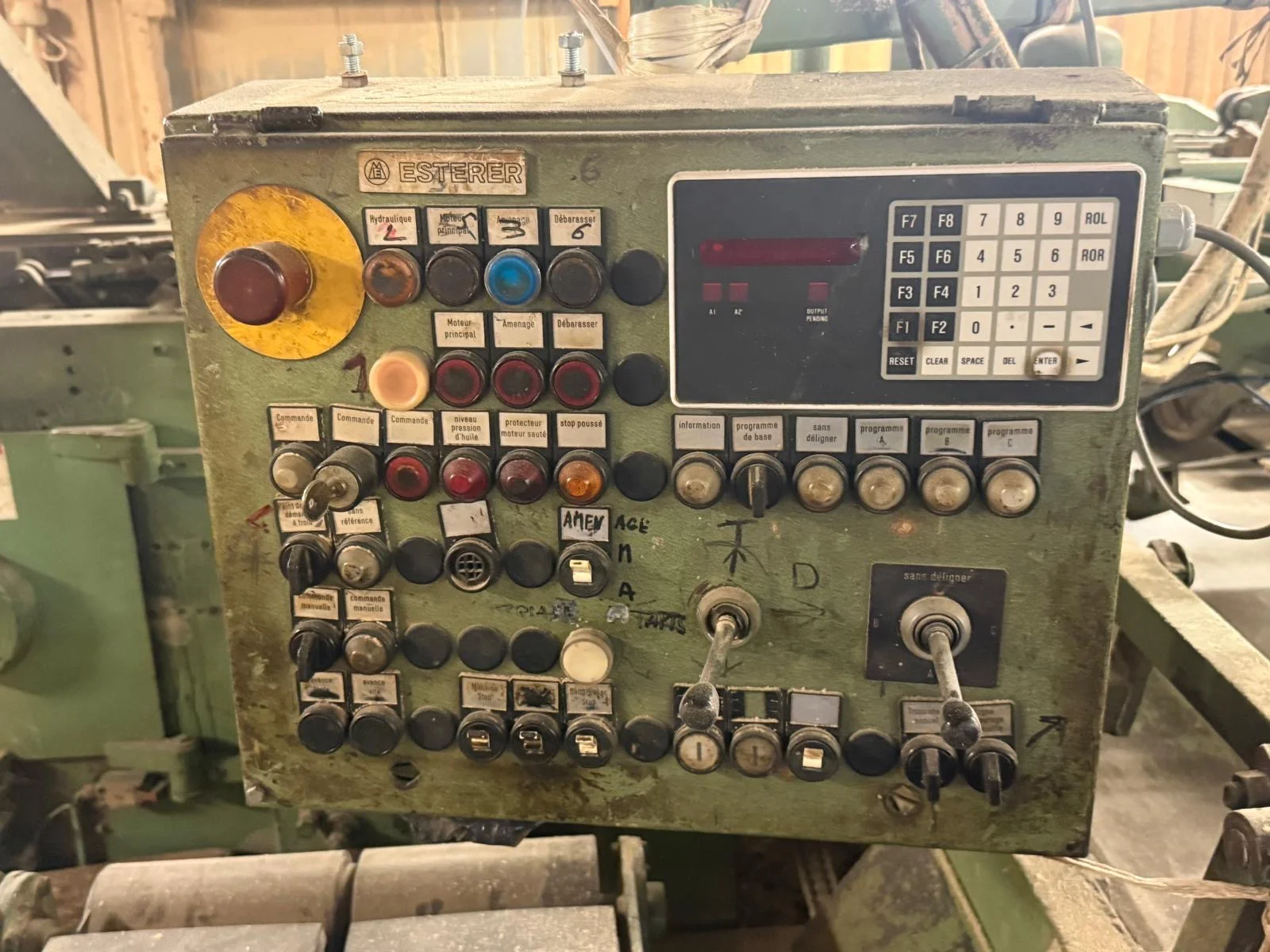

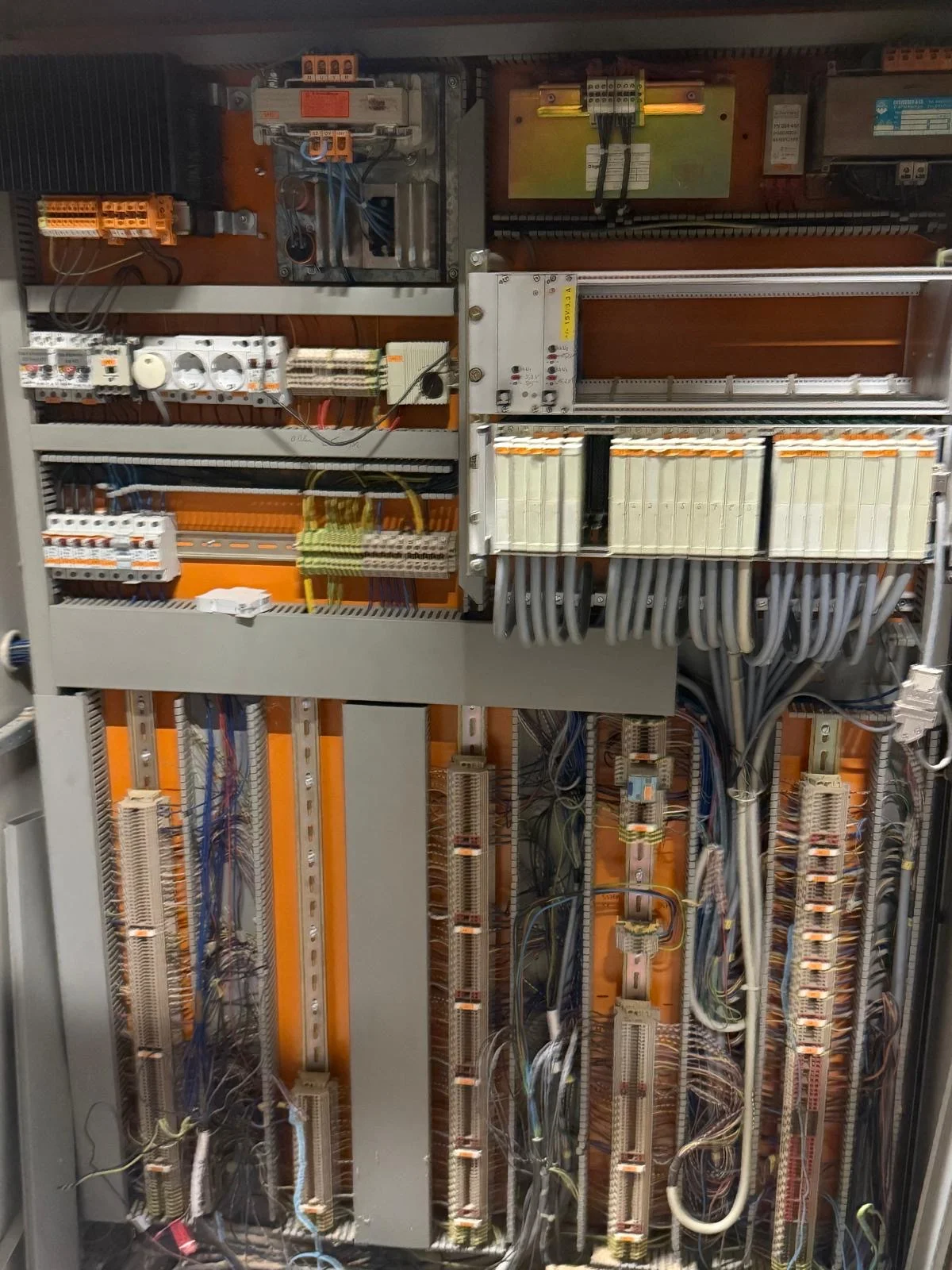

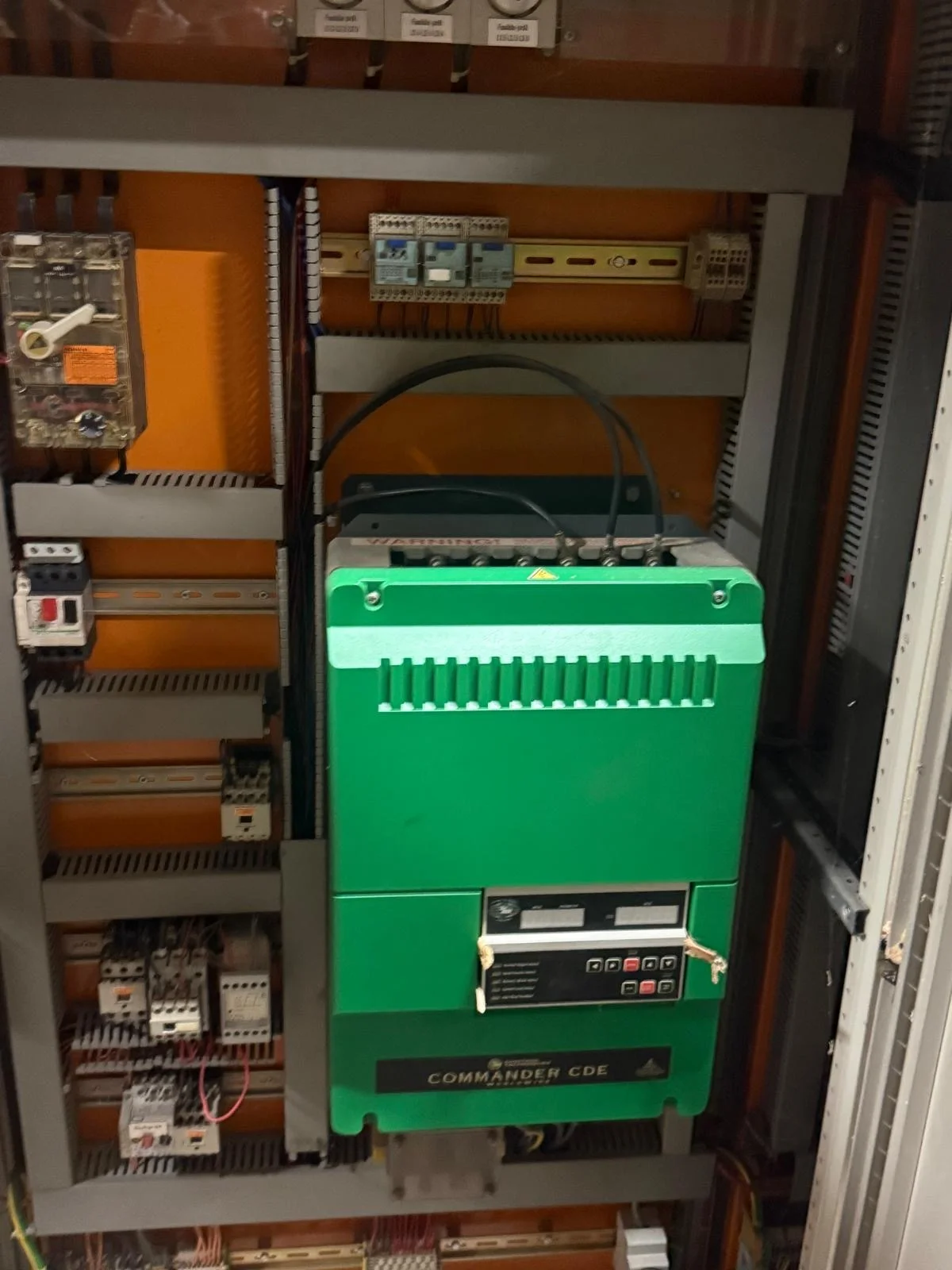

• Control system: EWD optimization control
• Machine frame: Welded steel construction for continuous industrial operation

Processing data

• Workpiece length: approx. 1,200–6,000 mm
• Workpiece width: approx. 80–700 mm
• Workpiece thickness: up to approx. 160 mm
• Max. feed speed: up to approx. 210 m/min (depending on model)
• Throughput: up to 22 workpieces/min (depending on workpiece dimensions and system configuration)
• Main motor: 110 kW
